DeeMaxx

DeeMaxx Caliper Set

NZ $793.60 excl GST
SKU: 67000
Sorry, the selected product is currently out of stock. Sorry, there are only 10 of this item currently in stock. the selected product is not available.

Description

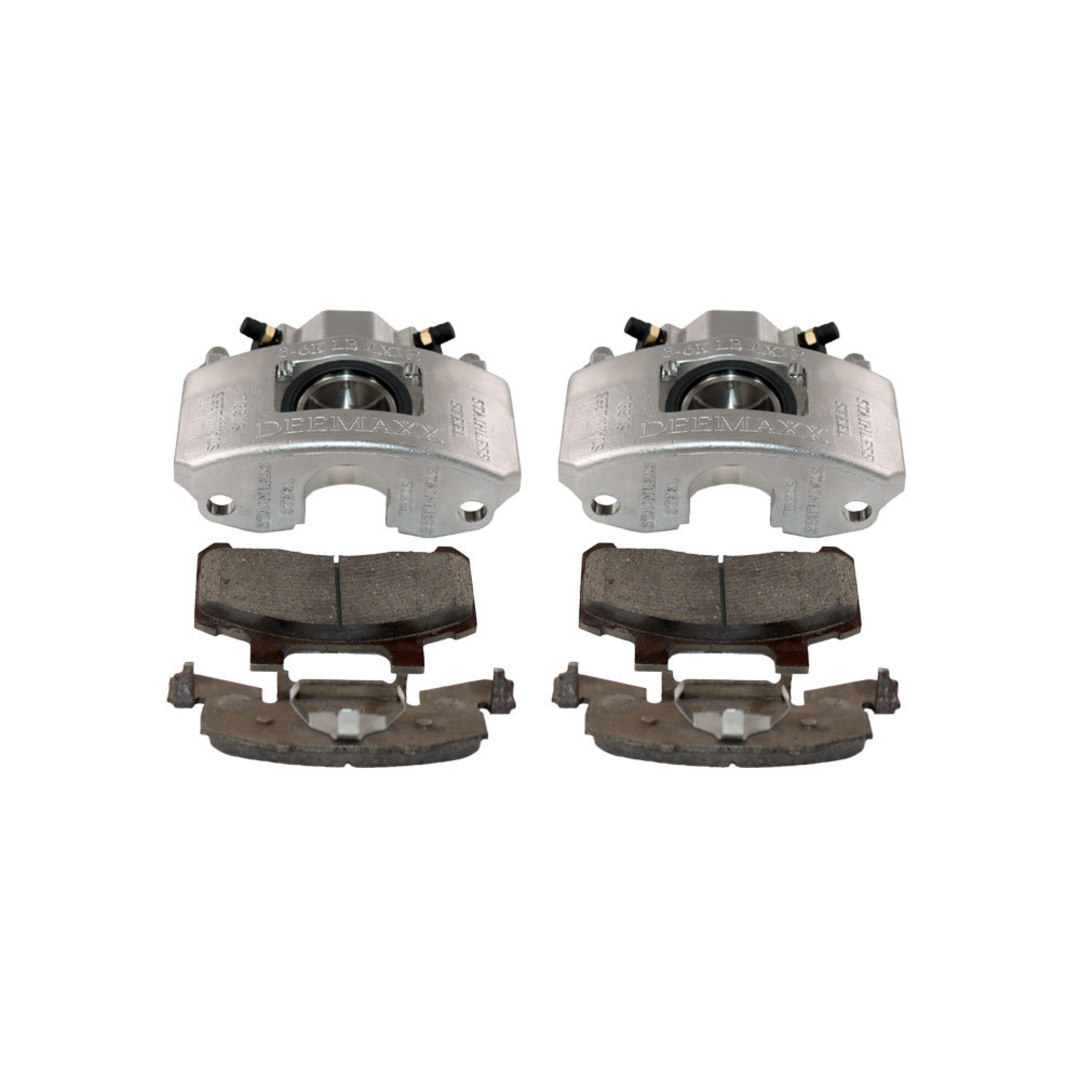

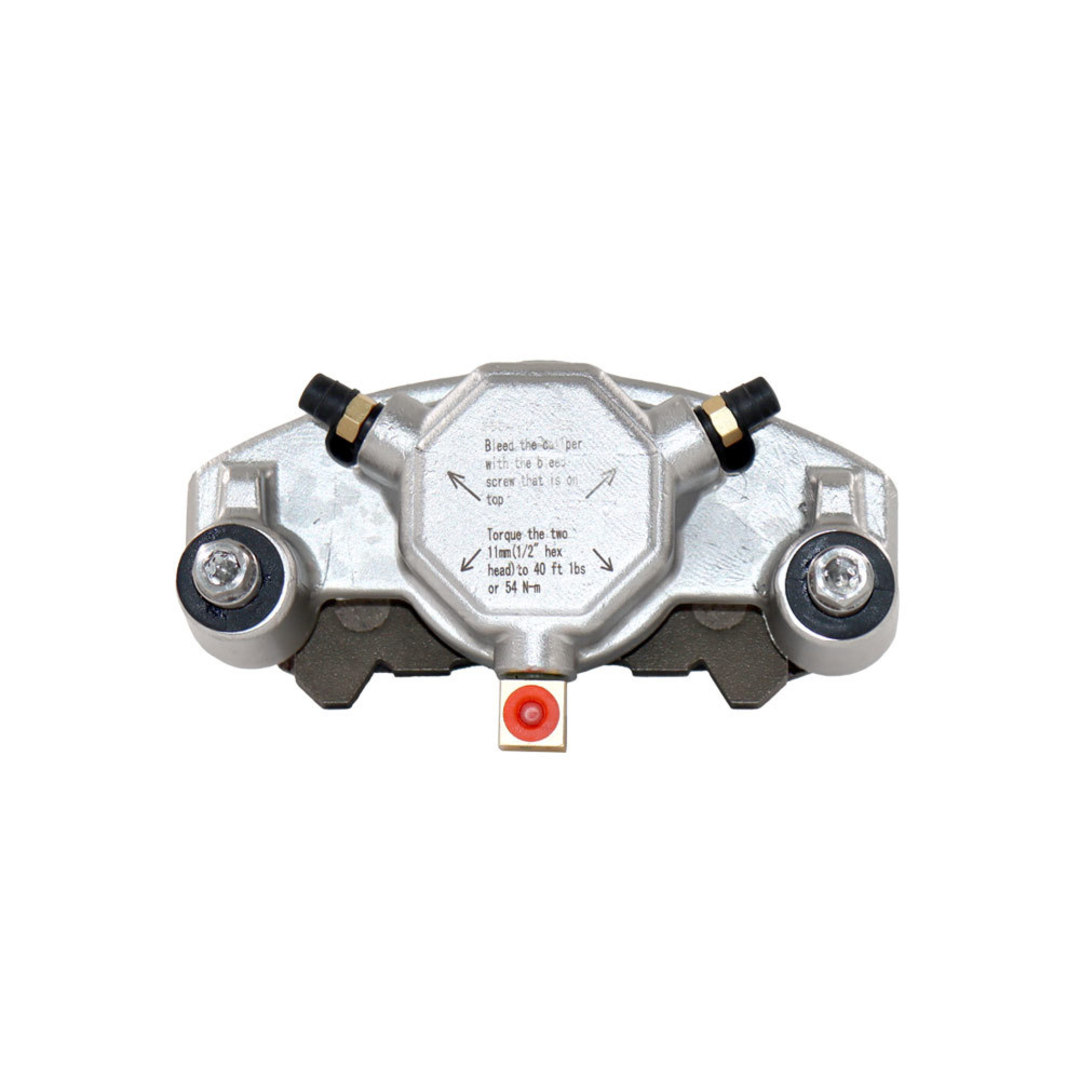

This DeeMaxx Caliper set in stainless steel is a marine-grade running gear component engineered for heavy saltwater and coastal towing applications.

Designed as a direct slot-in replacement for Kodiak 225 and standard DeeMaxx-style caliper mounts, this assembly features an entirely stainless steel construction to prevent rust scaling, component seizing, and fluid leaks under continuous marine exposure.

Key Features

  • 316-Grade Stainless Steel Construction: The caliper body, internal pistons, and mounting bolts are machined from high-grade 316 stainless steel to eliminate atmospheric rust and galvanic corrosion in marine environments.
  • Efficient Floating Caliper Design: Utilising a single-sided piston layout mounted on slide guides, the caliper body self-aligns during actuation, requiring fewer internal seals and moving parts to wear out or leak over time.
  • Superior Thermal Regulation: The floating architecture isolates the hydraulic fluid and piston assembly to the inboard side of the rotor, increasing airflow and accelerating heat dissipation to prevent brake fade.
  • Stainless-Backed Ceramic Pads: Equipped with premium ceramic brake pads fitted with solid stainless steel backing plates to stop pad-to-caliper rust-jacking and ensure clean retraction.
  • High-Pressure Field Tested: Every unit is factory pressure tested to 2,000 psi to guarantee structural integrity and fluid seal reliability under emergency braking thresholds.
  • Dual Bleeder Alignment Nipples: Features top and bottom bleeder ports to allow reversible left- or right-side axle mounting while ensuring complete air evacuation during system bleeding.

Applications

  • Marine Boat Trailers
  • Kodiak 225 Retrofits and Upgrades
  • Commercial Hire Fleets

Specifications

  • Brand: DeeMaxx
  • Axle Load Rating: Up to 2,600 kg per axle (Approximately 5,000 kg tandem capacity)
  • Caliper Frame Rating: 3,000 lbs to 6,000 lbs axles
  • Rotor Compatibility: Suits 22 mm thick vented brake rotors (10″ to 12″ systems)
  • Mounting Dimensions: 147 mm bolt-to-bolt centre spacing
  • Actuation Compatibility: Works with hydraulic over-ride couplers or electronic actuators (e.g., AL-KO iQ7)
  • Fluid Specification: DOT 3 or DOT 4 brake fluid

Specifications

Brand: DeeMaxx
