Hubs & Stubs Hydraulic Brake Hub Sets

DeeMaxx Hub Stub Kit 2000kg 5x4.5" PCD Stainless Steel with Park Brake

NZ $5,148.80 excl GST
SKU: 67100
Sorry, the selected product is currently out of stock. Sorry, there are only 1000 of this item currently in stock. the selected product is not available.

Description

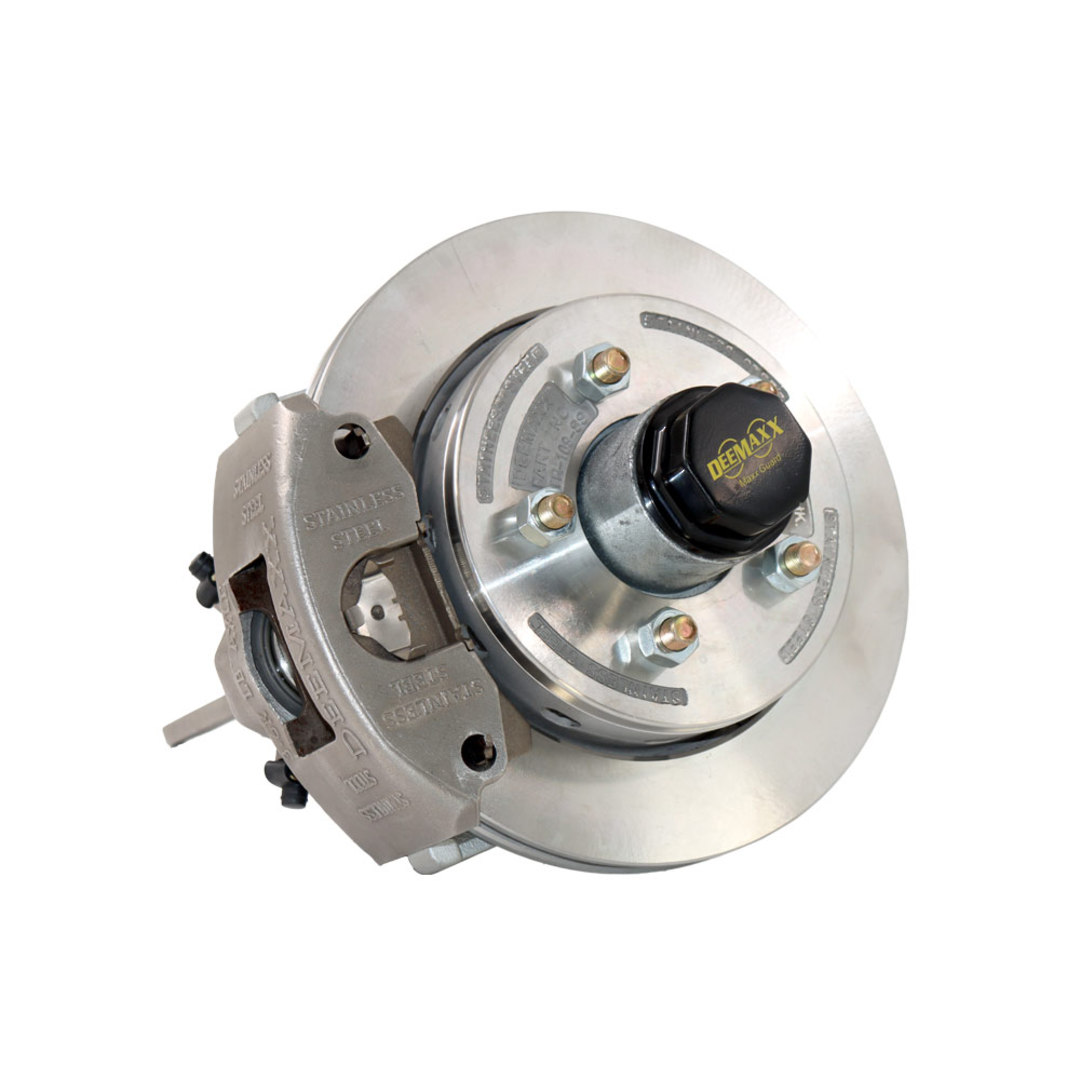

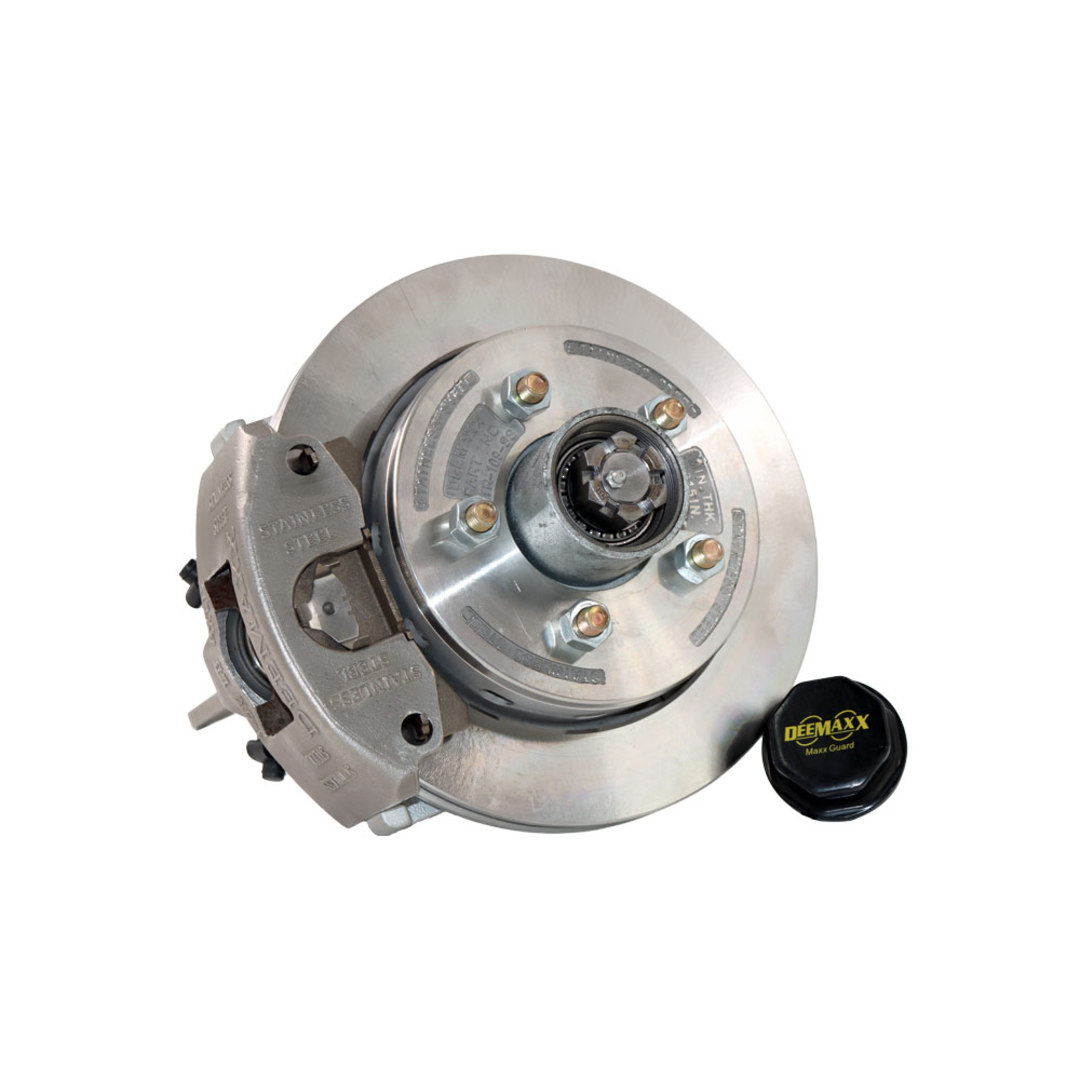

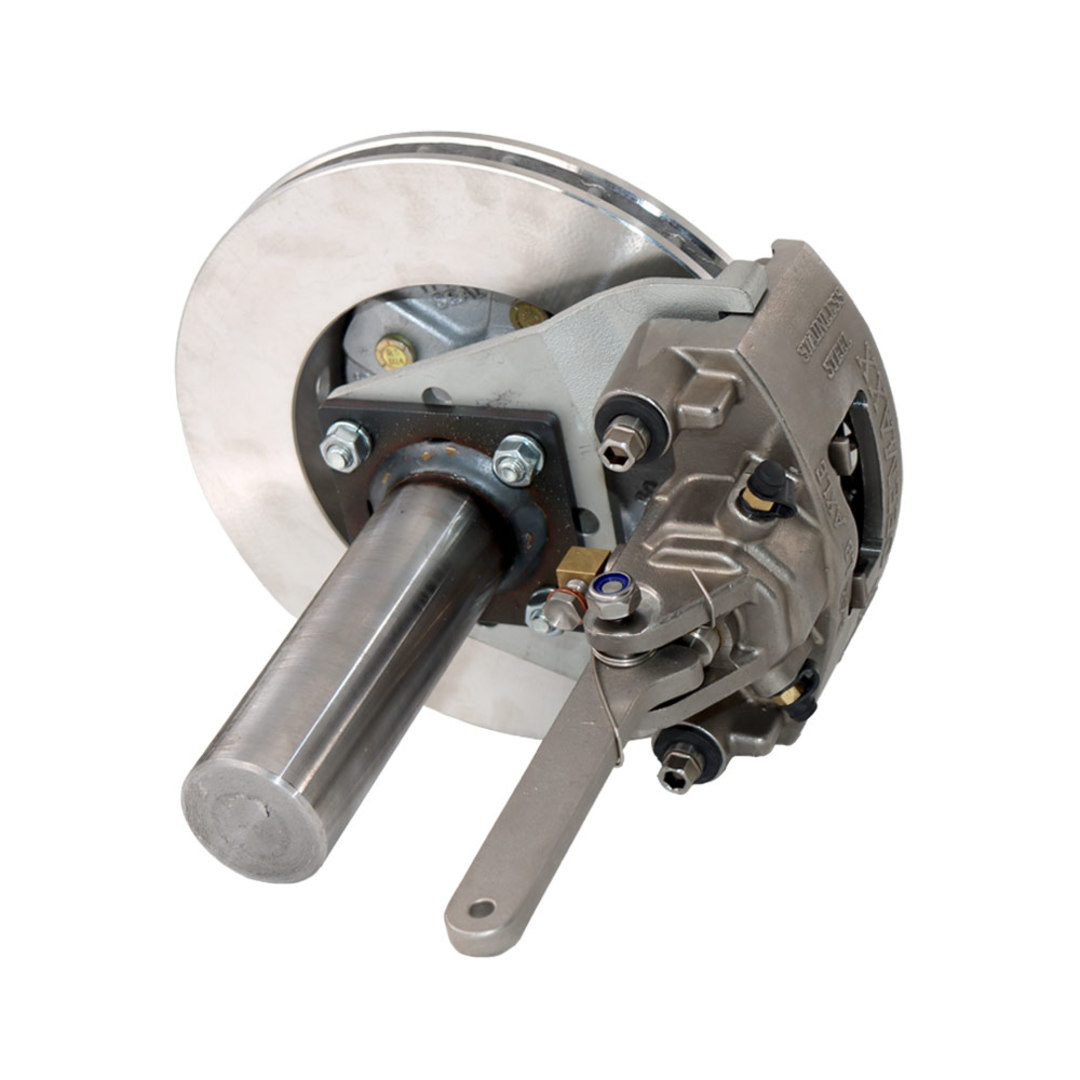

The DeeMaxx Hub/Stub Kit 2000kg 5x4.5" PCD Stainless Steel with Park Brake is a heavy-duty, marine-grade braking assembly engineered for single or tandem-axle trailer builds operating in high-corrosion environments.

Rated for a 2,000 kg capacity per pair, this kit unifies a high-tensile stub axle, galvanised hub, and premium stainless steel braking components into a single, pre-configured package. It is built to withstand continuous saltwater submersion and harsh coastal road conditions, eliminating the complexity of sourcing compatible components individually.

Key Features

  • High-Grade Stainless Steel Braking: The premium stainless steel discs and calipers resist rust scaling and pad binding, ensuring consistent stopping power after repeated saltwater exposure.
  • Dual-Layer Environmental Protection: The assembly features heavy galvanised hubs for sacrificial moisture protection and a specialised MAXX Coating on the brackets to resist road debris and salt corrosion.
  • Integrated Park Brake Caliper: The mechanical/hydraulic caliper incorporates a built-in park brake mechanism to satisfy legal parking brake requirements without external hardware.
  • Pre-Welded Flange Stub Axle: The 2000kg rated stub axle comes with a pre-welded flange to guarantee precise caliper alignment straight out of the box and eliminate fabrication adjustments.
  • Heavy-Duty Marine Sealing: The premium bearing kit includes specialised marine seals engineered to lock grease in and completely exclude water, silt, and contaminants.

Applications

  • Marine Boat Trailers
  • Commercial and Coastal Trailers
  • Custom Trailer Builds

Specifications

  • Brand: DeeMaxx
  • Load Capacity: 2,000 kg per pair
  • Hub Pattern: 5 x 4.5" PCD (Pitch Circle Diameter)
  • Disc Variant:  Vented Disc
  • Braking Actuation Type: Mechanical / Hydraulic with integrated mechanical park brake
  • Material Finishes: Stainless Steel (Caliper and Disc), Galvanised (Hub), MAXX Coating (Bracket)

Kit Inclusions

  • 2x Deemaxx Stub axle with welded flange 2000kg
  • 2x DeeMaxx Hub 5x4.5" PCD Galvanised
  • 2x DeeMaxx Vented Disc 5x4.5" PCD Stainless Steel
  • 2x DeeMaxx Disc Brake Caliper Mechanical/Hydraulic (Stainless Steel)
  • 2x DeeMaxx Disc Brake Bracket for 3500kg Axle (MAXX Coating)
  • 2x DeeMaxx Hub Cap Black (to suit 2000kg 5 stud hubs)
  • 1x Bearing and Seal Kit to suit DeeMaxx 2000kg HubSet

Specifications

Brand: DeeMaxx
Material: Stainless Steel
Load Rating: 200kg
PCD: 5x4.5"
