Hubs & Stubs Hydraulic Brake Hub Sets

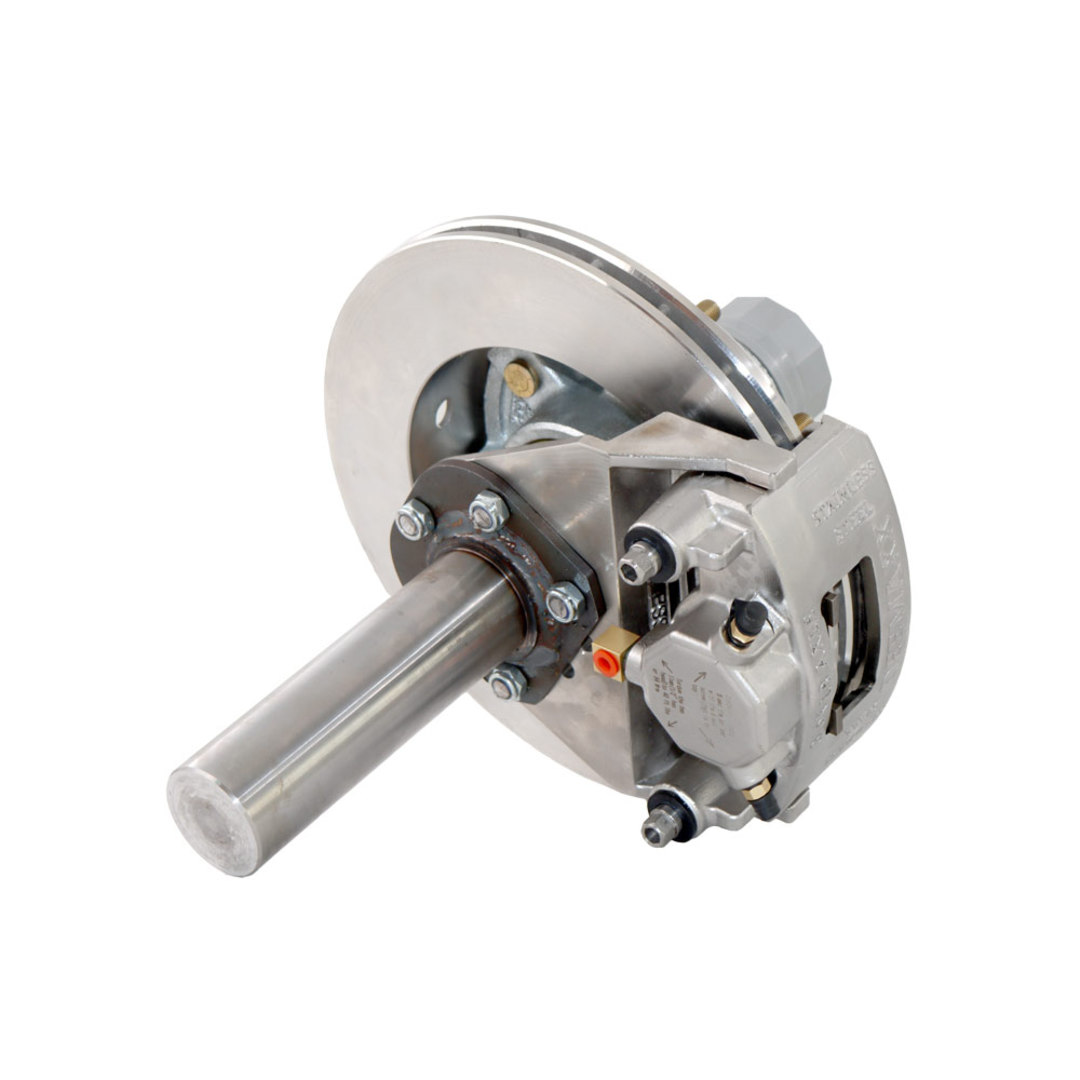

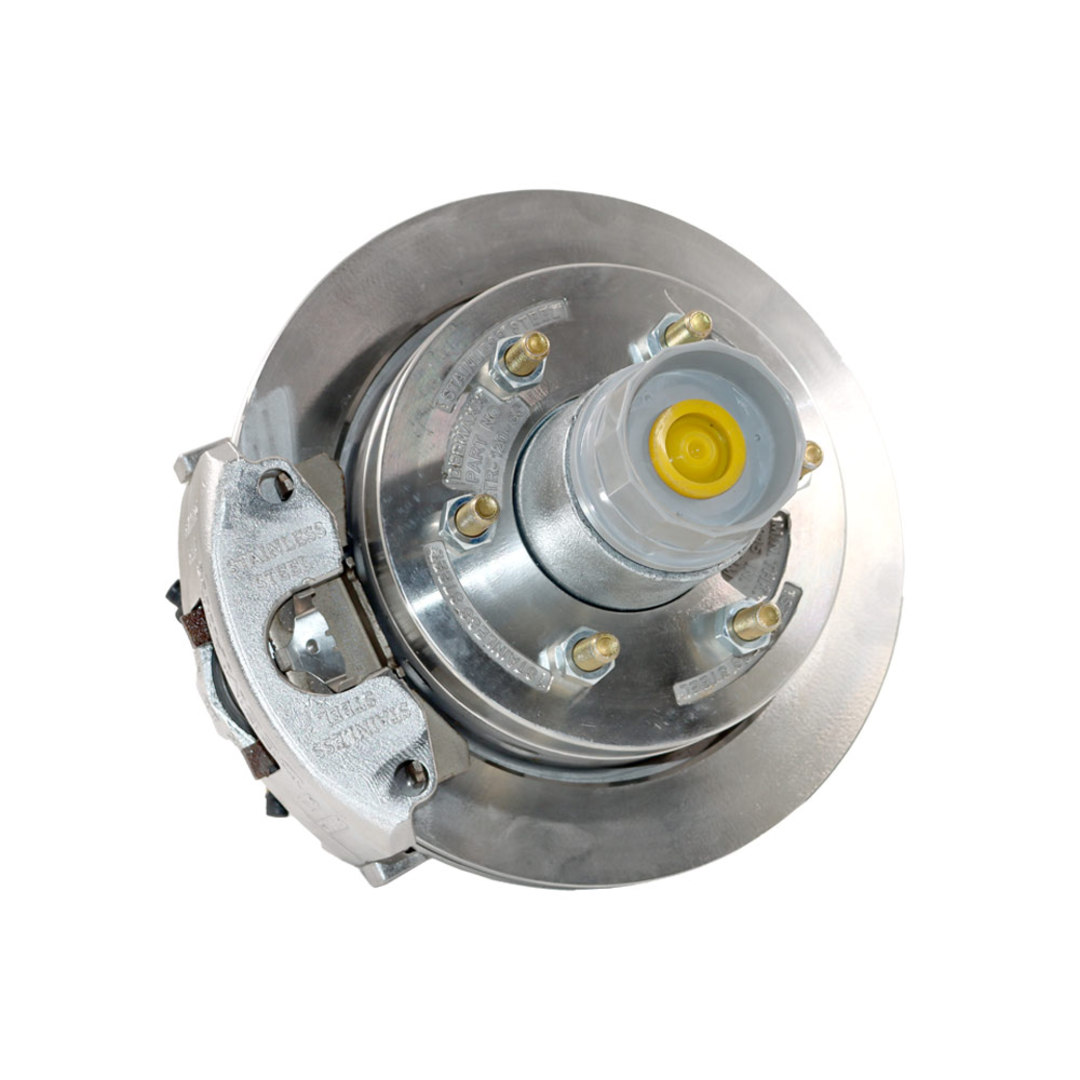

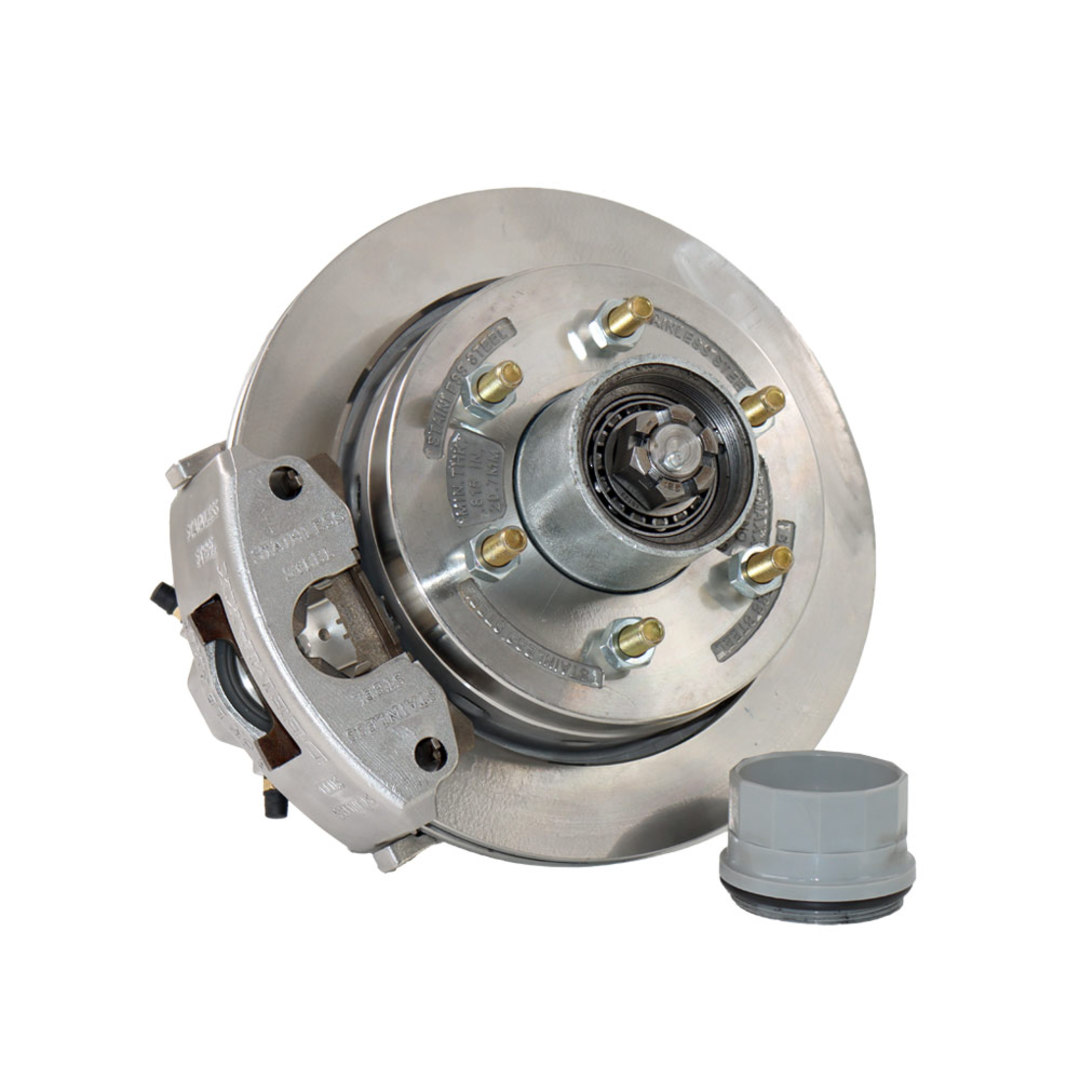

DeeMaxx Hub Stub Kit 2720kg 6x5.5" PCD Stainless Steel without Park Brake

NZ $5,385.00 excl GST
SKU: 67130
Sorry, the selected product is currently out of stock. Sorry, there are only 1000 of this item currently in stock. the selected product is not available.

Description

The DeeMaxx Hub/Stub Kit 2730kg 6x5.5" PCD Stainless Steel without Park Brake provides a heavy-duty, 6-stud running gear assembly optimised for pure hydraulic braking performance without parking brake mechanisms.

Rated at 2,730 kg per pair, this kit integrates 6,000 lbs structural stub axles with an entirely stainless steel fluid end. By eliminating mechanical levers and cable link points, this configuration is purpose-built to prevent salt accumulation, pad drag, and mechanical binding on heavy-duty commercial or marine trailers exposed to repeated submersion.

Key Features

  • Unobstructed Hydraulic Actuation: The Stainless Steel 3000–6000 lbs calipers deliver direct piston pressure across the friction face, eliminating external parking linkages to streamline the line routing and reduce moving parts.
  • Complete Stainless Mounting Interface: Both the calipers and caliper mounting brackets are machined from solid stainless steel, preventing the rust-jacking, paint flaking, and structural degradation associated with cast iron or coated steel.
  • High-Inertia  Vented Rotors: The 6x5.5" PCD stainless steel discs utilise a thick-walled, vented design to dissipate intense thermal loads quickly, protecting wheel bearings from heat transfer during heavy braking.
  • Hot-Dip Galvanising: The thick-walled hub castings undergo a deep galvanising process to establish a durable zinc barrier that isolates the raw structural steel from moisture and road salt.
  • Integrated Flange Alignment: The 6,000 lbs rated stub axles feature factory-welded flanges to ensure precise, square caliper alignment right out of the crate without relying on loose, bolt-on mounting plates.

Applications

  • Multi-Axle Marine Transporters
  • Heavy Commercial Fleets
  • Heavy-Duty Axial Upgrades

Specifications

  • Brand: DeeMaxx
  • Load Capacity: 2,730 kg per pair
  • Hub Pattern: 6 x 5.5" PCD (Pitch Circle Diameter)
  • Axle Rating Compatibility: 6,000 lbs structural rating
  • Disc Variant: 17 lbs High-Mass Vented Disc
  • Braking Actuation Type: Hydraulic Only (no mechanical park brake arm)
  • Material Finishes: Stainless Steel (Caliper, Disc and Mounting Bracket), Galvanised (Hub)

Kit Inclusions

  • 2x DeeMaxx Stub Axle with welded flange 6000lbs
  • 2x DeeMaxx Hub 6x5.5" PCD Galvanised
  • 2x DeeMaxx Vented Disc 6x5.5" PCD Stainless Steel (17lbs)
  • 2x DeeMaxx Caliper 3000 - 6000 lbs Rating Stainless Steel
  • 2x DeeMaxx Disc Brake Bracket for 2730kg Axle (Stainless Steel)
  • 2x DeeMaxx Hub Cap Grey (to suit 2730kg 6 stud hubs)
  • 1x Bearing and Seal Kit to suit DeeMaxx 6000lbs HubSet

Specifications

Brand: DeeMaxx
Load Rating: 2720kg
Material: Stainless Steel
PCD: 6x5.5"
