Hubs & Stubs Hydraulic Brake Hub Sets

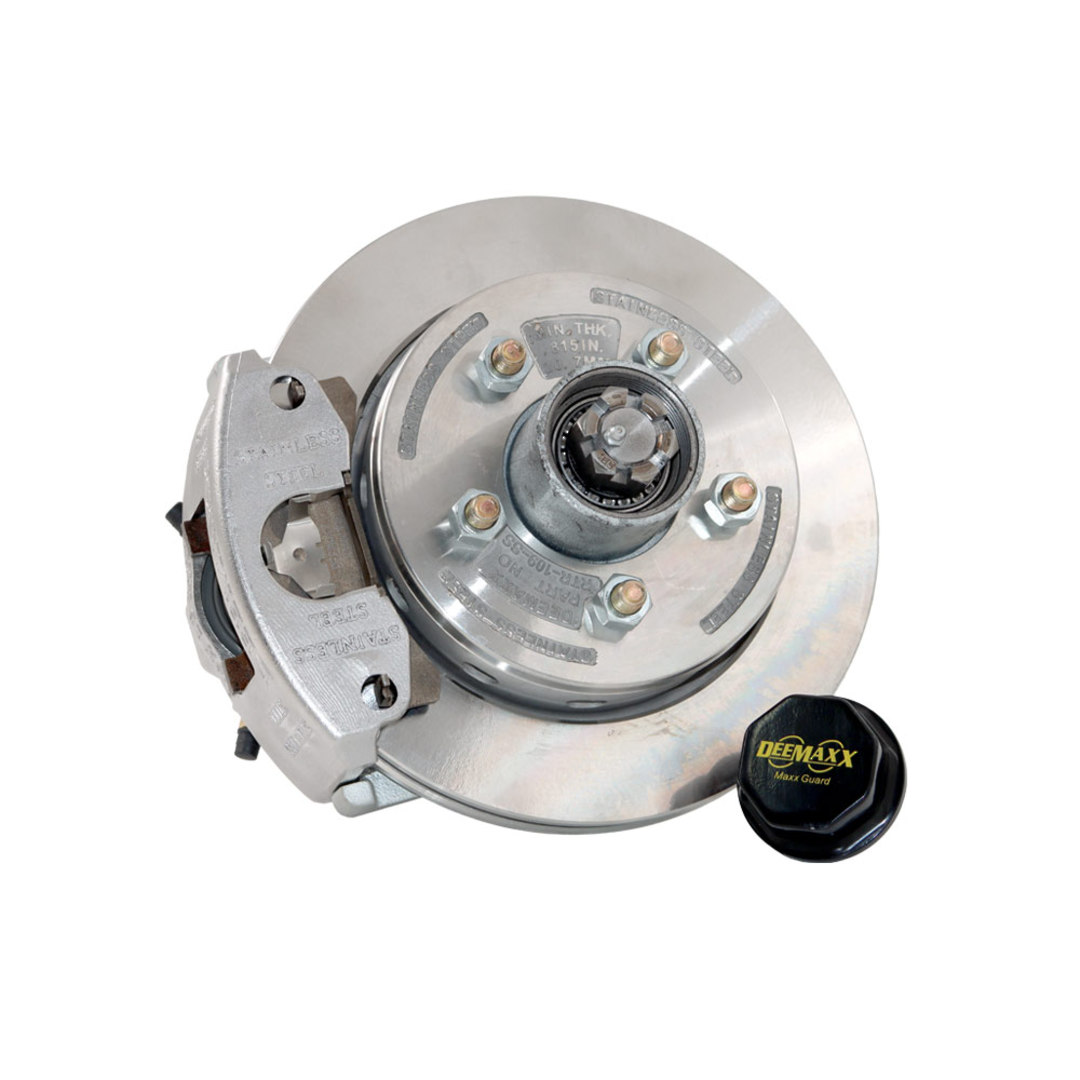

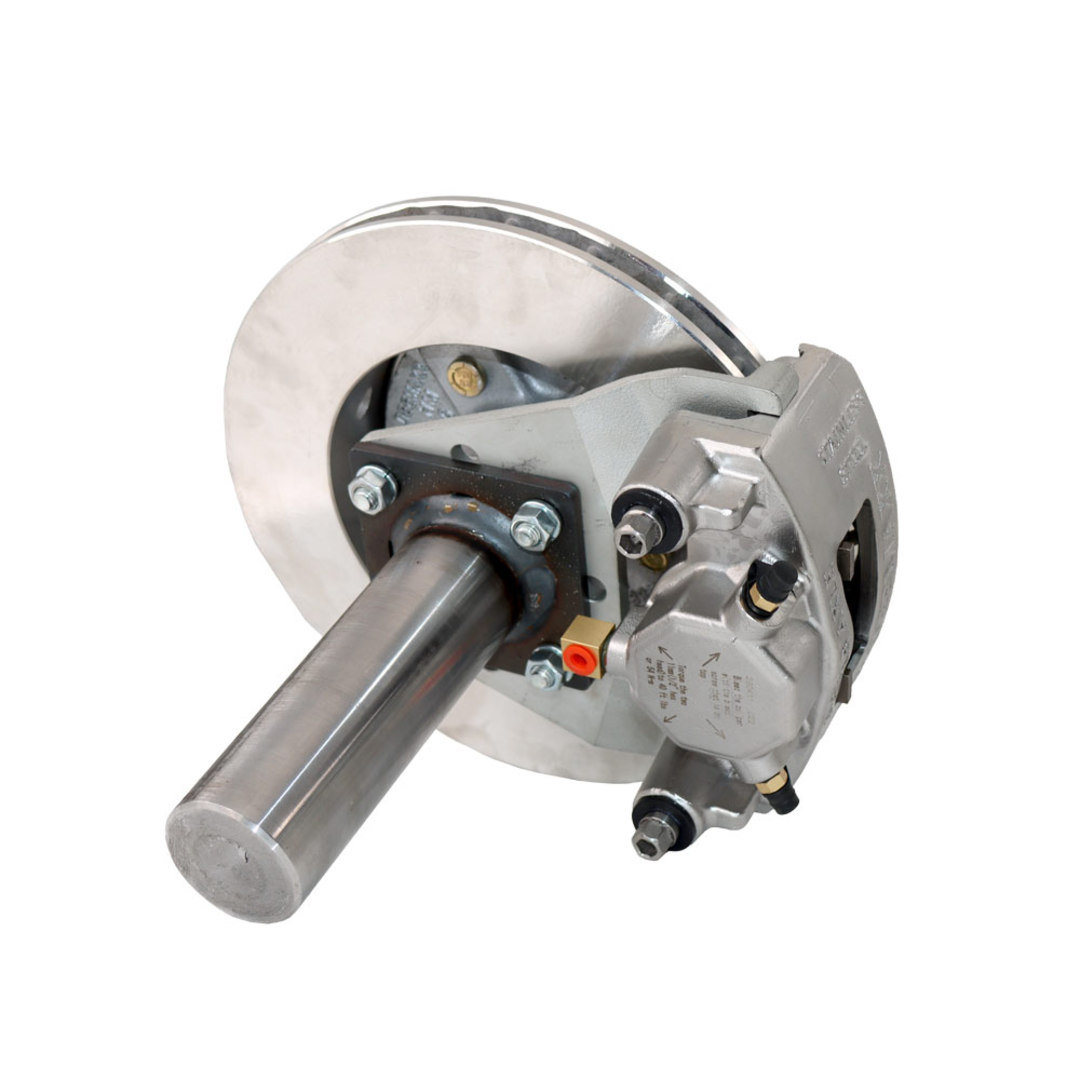

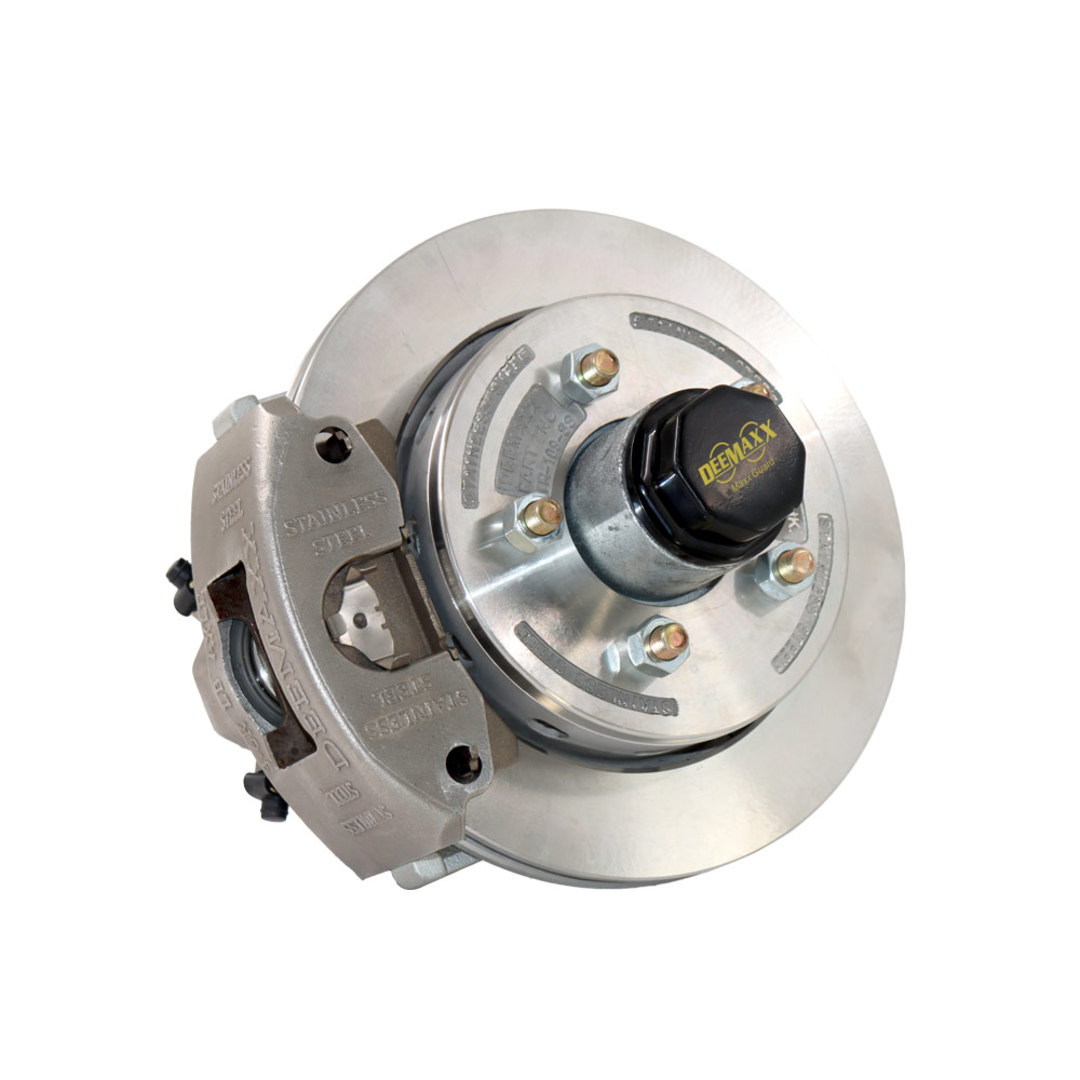

DeeMaxx Hub Stub Kit 2000kg 5x4.5" PCD Stainless Steel without Park Brake

NZ $4,780.30 excl GST
SKU: 67110
Sorry, the selected product is currently out of stock. Sorry, there are only 1000 of this item currently in stock. the selected product is not available.

Description

The DeeMaxx Hub/Stub Kit 2000kg 5x4.5" PCD Stainless Steel without Park Brake is a dedicated hydraulic braking assembly purpose-built for high-salinity and marine trailering applications.

This kit eliminates mechanical parking brake linkages in favour of a streamlined, pure hydraulic configuration rated for 2,000 kg per pair. By pairing high-tensile steel structural parts with marine-grade stainless steel fluid components, this pre-matched bundle prevents salt build-up and component seizing on trailers exposed to repeated launch cycles.

Key Features

  • Pure Hydraulic Performance: The heavy-duty Stainless Steel 3000-6000 lbs caliper delivers direct fluid pressure across the piston without the added weight or moving components of an external handbrake arm.
  • Corrosion-Resistant Friction Surfaces: The vented discs are cast from premium stainless steel to stop rust scaling, maintaining a clean pad-to-rotor contact patch even after months of seasonal storage.
  • Sacrificial Zinc Protection: The hub assemblies undergo a hot-dip galvanising process to create an iron-zinc alloy barrier that prevents water and air from reaching the raw structural steel.
  • Fixed Alignment Geometries: Each 2000kg stub axle features an integrated, factory-welded flange to secure the MAXX-coated brake bracket without relying on loose bolt-on adapters.
  • Contaminant-Excluding Seal Design: The heavy-duty bearing journal kit uses double-lip marine seals to retain internal grease pressure while actively blocking silt and saltwater entry.

Applications

  • Saltwater Boat Launching
  • Unbraked Tandem Rear Axles
  • Industrial Fleet Trailer

Specifications

  • Brand: DeeMaxx
  • Load Capacity: 2,000 kg per pair
  • Hub Pattern: 5 x 4.5" PCD (Pitch Circle Diameter)
  • Axle Rating Compatibility:  3k to 6k axles
  • Disc Variant: SS Vented Disc
  • Braking Actuation Type: Hydraulic Only
  • Material Finishes: Stainless Steel (Caliper and Disc), Galvanised (Hub), MAXX Coating (Bracket)

Kit Inclusions

  • 2x Deemaxx Stub axle with welded flange 2000kg
  • 2x DeeMaxx Hub 5x4.5" PCD Galvanised
  • 2x DeeMaxx Vented Disc 5x4.5" PCD Stainless Steel
  • 2x DeeMaxx Caliper - Stainless Steel
  • 2x DeeMaxx Disc Brake Bracket for 2000kg Axle (MAXX Coating)
  • 2x DeeMaxx Hub Cap Black (to suit 2000kg 5 stud hubs)
  • 1x Bearing and Seal Kit to suit DeeMaxx 2000kg HubSet

Specifications

Brand: DeeMaxx
Material: Stainless Steel
Load Rating: 2000kg
PCD: 5x4.5"
