Description

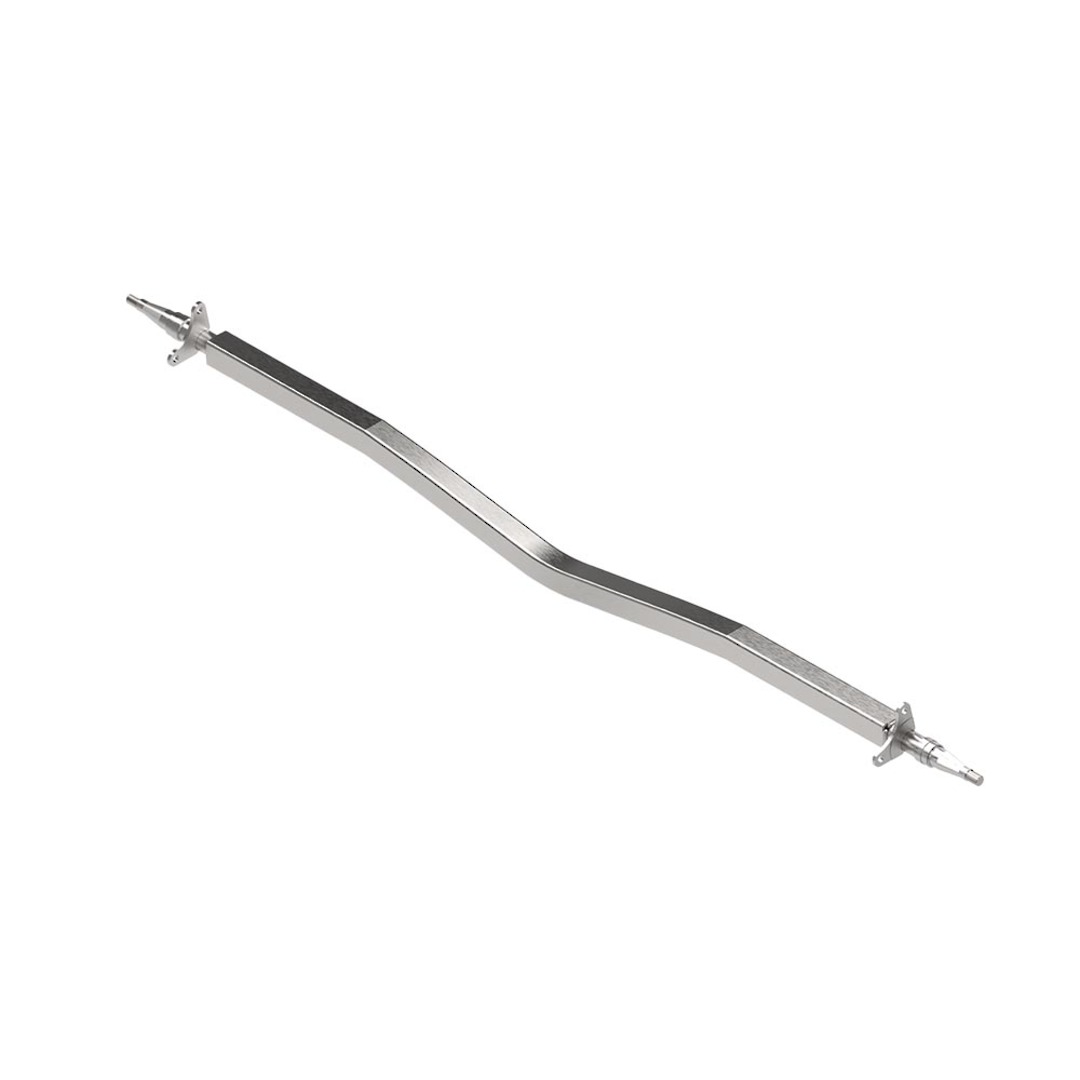

This 1,750 kg gull wing axle is built for hydraulic disc brake systems and comes pre-fitted with cast iron hubs and calipers for faster installation. The axle beam is hot dip galvanised for long-term corrosion protection. Its hollow box section construction reduces weight without compromising strength, making it easier to handle during setup. At the hub, precision-machined stub axles ensure accurate caliper alignment, while premium NSK bearings and a Geomet-coated cast iron rotor provide smooth, reliable braking under load.

Need a custom axle? Use our online axle builder to get a quote. Or let us know your axle dimensions when ordering by email or phone.

Key Features

  • 1,750 kg axle rating
  • Hot dip galvanised axle beam
  • Hollow box section is strong but lighter than solid axles
  • Cast iron disc hubs with Geomet-coated rotors for durability
  • Stub axles machined for precise caliper alignment
  • NSK Japanese tapered roller bearings provide smooth, reliable operation
  • Marine-grade oil seal with stainless steel back plate
  • 5x114.3 mm (5x4.5") PCD suits a wide range of trailer wheels

Applications

  • Medium to heavy-duty boat trailers
  • Tandem axle trailer builds
  • Marine applications
  • Custom trailer builds

Specifications

  • Axle type: Gull wing
  • Axle rating: 1,750 kg
  • Axle length: 2 metres (can be customised)
  • Axle finish: Hot dip galvanised
  • Beam profile: 50x50 mm, 5 mm wall thickness, hollow box section
  • Hub type: Hydraulic disc, cast iron
  • Rotor: Cast iron with Geomet coating
  • Bearings: NSK tapered roller
  • PCD: 5x114.3 mm (5x4.5")
  • Stub axle: Precision-machined
  • Oil seal: Stainless steel-backed marine-grade seal

Inclusions

  • 65110 – Hub Set 1,750 kg 5x4.5" PCD Braked Hyd Cast Disc – Pair
  • 98036 – Box section 50x50 mm, 5 mm thickness, 2 m length, bare steel
  • 65200 – Brake Calipers Cast Iron (pr) suits 1,500/1,750/2,000 kg Hub Set

FAQs

Q: What are Japanese NSK bearings?

A: NSK is a world-leading Japanese bearing manufacturer. Their tapered roller bearings are highly regarded for strength, smooth performance, and long service life, offering a clear advantage over generic alternatives.

Q: What braking system is needed to operate the hydraulic disc brakes?

A: This set can be used with a hydraulic override coupling fitted to the trailer drawbar. You may also opt to install an electric-over-hydraulic kit if you prefer to have more braking options, and if you want the ability to control the brake from inside the towing vehicle.

Our HydroBrake EOH actuator and controller kits are excellent options. Please visit this page to learn more:

https://www.treadway.co.nz/shop/brakes/hydraulic-brake-kits.html

Q: Does the axle include brake pads?

A: Yes. The cast iron calipers are supplied complete with brake pads fitted. Replacement pads are available separately.

Q: What are the advantages of using box section beams for axles?

A: Box section beams (hollow tube axles) offer significant weight savings without compromising strength for most applications. Their lighter construction allows for increased payload capacity, easier handling during installation, and faster fabrication turnaround. They also allow for easy customisation, making them a flexible choice for trailer builders.

Q: What is Geomet surface treatment?

A: Geomet is a water-based zinc–aluminium flake coating, typically used in truck and car brakes. It provides long-lasting protection against rust and corrosion, is highly heat-resistant so it won’t burn off under braking, and is environmentally friendly as it contains no hexavalent chrome or heavy metals. It works through physical barrier protection, galvanic action (where zinc corrodes before steel), and passivation—forming a stable layer that slows further oxidation. This makes it ideal for trailer brake rotors, delivering durability, consistent performance, and reduced maintenance.

Q: What are the benefits of cast iron hubs?

A: Cast iron hubs are a popular choice for trailer braking systems due to their combination of strength, thermal performance, and cost-effectiveness. Here are the key benefits:

High Strength and Load Capacity: Cast iron has excellent compressive strength, making it well-suited for supporting heavy loads without deforming. This makes it ideal for medium- to heavy-duty trailers.

Superior Heat Dissipation: During braking, friction generates heat. Cast iron naturally dissipates heat efficiently, helping to maintain braking performance and reduce the risk of brake fade over time.

Durability and Wear Resistance: Cast iron is highly resistant to wear and abrasion, which contributes to a longer service life—especially important in braking components that experience repeated stress.

Stable Performance Under Load: Its rigidity and dimensional stability under high temperatures ensure consistent braking performance, even during prolonged use.

Specifications

Load Rating: 1750kg
Type/Finish: Galvamised
Brand: Treadway
PCD: 5x114.3
